Products - Box awninng lighting

Box awninng lighting

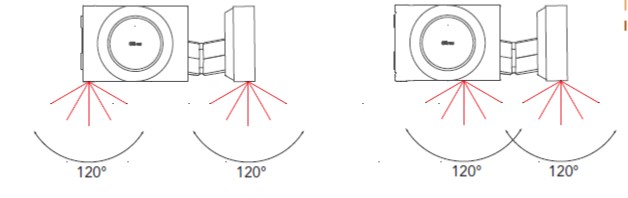

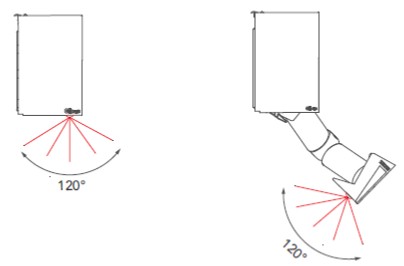

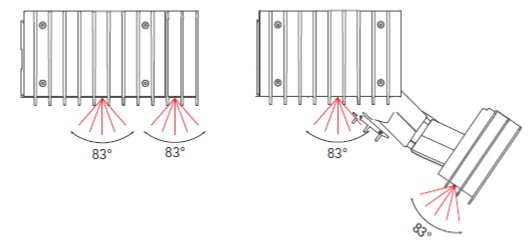

SPOT LED integrated in the lower part of the loading bar and / or in the lower part of the awning box. Micro circular spot LED, 6mm in diameter, in modular bars with 5 and 7 LED spotlights.
Neutral white light, color temperature 4000 ° K (on request warm light with color temperature of approximately 3000 ° K). One focus every 18 cm according to the dimensional table. Each LED has a luminous flux of 84 lumens adjustable with dimmer and maximum consumption of 1.2 Watt. Adjustable intensity with dimmer.
Operation through the remote control of the awning (Somfy RTS multi-channel control, IO Homecontrol or with wall pushbutton for normal engine). Supply voltage of lights 24 volts DC. Degree of protection IP 44. Tubular feeder integrated in the awning for normal motor, RTS, IO Homecontrol.
